nPM1300Power Management IC

Power Management IC (PMIC) with unique system management features

The nPM1300 PMIC simplifies system design by integrating essential functions required for embedded Bluetooth Low Energy designs into one small package, enabling longer run times and efficient battery charging with fewer components.

The nPM1300 is optimized for maximum efficiency and compact size, and is configurable through an I2C-compatible Two Wire Interface (TWI). This interface enables easy access and configure a range of advanced system management functions, including a two-button hard reset, battery fuel gauging, system-level watchdog, power loss warning, and recovery from failed boot. These functions are typically implemented as discrete components in Bluetooth Low Energy (LE) embedded designs, but the nPM1300 integrates them into a single, compact package, simplifying system design and reducing the number of required components.

The nPM1300 is designed to provide highly efficient power regulation for Nordic’s nRF52 and nRF53 Series System-on-Chips (SoCs), supporting wireless protocols such as Bluetooth Low Energy, LE Audio, Bluetooth mesh, Thread and Zigbee. It is ideal for compact and advanced IoT products such as advanced wearables and portable medical applications.

Ask us about this product for more technical information and details on how to obtain samples.

  • 800 mA battery charger
  • Two 200 mA buck DCDC regulators
  • Two 100 mA Load switches / 50 mA LDOs
  • Two-button hard reset
  • Fuel gauge
  • System-level watchdog and failed-boot recovery
  • Intelligent power-loss warning
  • Five GPIOs
  • Three LED drivers
  • Controlled via I2C compatible TWI
  • USB-C compatible

General Overview

Hardware features of the nPM1300

The nPM1300 has a USB Type-C compliant linear charger with an adjustable charging current of up to 800 mA, configurable automatic thermal regulation, and an input voltage range of 4.0 to 5.5 V. The user can adjust the charging termination voltage between 3.5 V and 4.45 V, and the charger is compatible with Li-ion/Li-Polymer/LiFePO4 battery chemistries. It supports JEITA compliant battery thermal protection and dynamic power path management, which allows the device to optimize the charging path based on the application's power requirements.

The nPM1300 also features two highly efficient 200 mA buck converters, for step-down regulation of the battery or USB input voltage. The start-up output voltage is pin selectable and digitally runtime adjustable from 1.0 to 3.3 V, with the option for forced or automatic PFM (Pulse Frequency Modulation) and PWM (Pulse Width Modulation) mode selection for minimum noise and maximum efficiency. The PMIC has two 100 mA load switches that can be configured to act as LDO's (Low Dropout Regulators), delivering 1.2 - 3.3 V at up to 50 mA each. A 10-bit ADC (Analog-to-Digital Converter) is provided for system monitoring, and can be used to measure the battery voltage, battery temperature, die temperature, and charging and discharge currents.

The device also features three SW controlled or automatic LED drivers. Other features include ship and hibernate modes with pin-, timer-, and USB wake-up options, and a watchdog timer with the option for either reset or power cycling. The PMIC also has power fail warning, recovery from failed boot-up, and a long press to hard reset feature for one or two buttons. A Nordic Semiconductor host SoC may also take advantage of the hardware hooks set in place for battery fuel gauging. The nPM1300 is available in QFN 5 mm x 5 mm and WLCSP 3.1 mm x 2.4 mm package options.

Latest News

Nordic Semiconductor announces multi-function Power Management IC (PMIC) with unique system management features

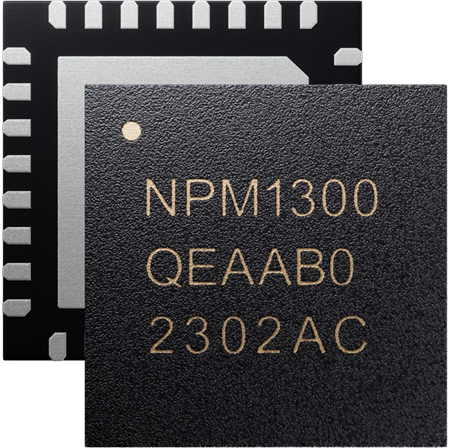

Front of an IC saying NPM1300, QEAAB0, 2302AC, with back showing QFN pads

The latest addition to Nordic’s PMIC portfolio, the nPM1300 PMIC simplifies system design by integrating essential functions required for Bluetooth Low Energy embedded designs, while supporting longer run times and efficient battery charging

Nordic Semiconductor today announces its plan to release a third Power Management IC (PMIC) in mid-2023 to expand its PMIC portfolio. The nPM1300 expands the company’sPMIC offering by adding support for charging of larger batteries and support for four regulated power rails. The nPM1300 will be optimized for efficiency and compact size (3.1 x 2.4 mm WL-CSP or 5 x 5 mm QFN) and is digitally configurable through an I2C-compatible Two Wire Interface (TWI). The digital interface provides access to several system management functions that are usually implemented as discrete functions in Bluetooth® Low Energy (LE) embedded designs - such as hard reset, battery fuel gauge, system-level watchdog, power loss warning, and recovery from failed boot.
