Power Management ICs

Designed to reduce power consumption

Nordic Semiconductor leverages its extensive experience in ultra-low power wireless technology to develop power management ICs, enabling industry-leading low power wireless solutions.

Why choose Nordic´s power management ICs?

			MAXIMUM ENERGY EFFICIENCY: Ultra-low power consumption means maximum energy efficiency from when the electrons leave the battery until RF signals are converted to radio waves.

			HIGH INTEGRATION: Combining valuable system and power management features with essential PMIC functions in a compact package, cuts board space, complexity and bill of materials.

			SEAMLESS DEVELOPMENT: In a perfect world, a hardware engineer wouldn’t need to write code and a software engineer wouldn’t have to read the datasheet. The PC application, nPM PowerUP creates that world.

Comparison of our Power Management ICs

We currently have three Power Management ICs in our portfolio. See their different features here.

	nPM1300	nPM1100	nPM6001
Buck regulator	2	1	4
Battery charger	✔️	✔️
LDO	2		2
Load switch	2
Termination voltage	3.5 to 4.45 V	4.1 to 4.2 V, or 4.25 to 4.35 V
Max charging current	800mA	400mA
Dynamic power-path management	✔️	✔️
Thermal protection	✔️	✔️
Battery compatibility	LiFePO4, Li-ion, LiPo	Li-ion, LiPo
Input voltage	4 to 5.5 V	4.1 to 6.7 V	3 to 5.5 V
USB compliance	Type-C	✔️
Regulated output voltage	1 to 3.3 V	1.8 to 3 V	0.5 to 3.3 V
Max current per buck	200 mA, 200 mA	150mA	550 mA, 200 mA, 150 mA, 150 mA
System monitoring	System, input bus and battery voltages. Battery current and temperature. Die temperature.
Fuel gauge	✔️
Hard system reset	✔️
Timed wake-up	✔️		✔️
Watchdog timer	✔️		✔️
Ship / hibernate mode	✔️	✔️	✔️
Brown-out detector	✔️	✔️	✔️
LED drivers, GPIOs	3, 5	2, 0	0, 3
Control interface	TWI	Pin-configurable	TWI
Regulatory compliance	CE, JEITA, RoHS	CE, JEITA, RoHS	CE, RoHS
Operating tempetature	-40 to 85°C	-40 to 85°C	-40 to 85°C
Evaluation kits	nPM1300 EK	nPM1100 EK	nPM6001 EK
Package options	5x5 mm QFN32, 3.1x2.4 mm WLCSP	4x4 mm QFN24, 2.1x2.1 mm WLCSP	2.2x3.6 mm WLCSP

Webinar

Discover nPM1300 - The Future of Embedded Power Management

Get to know power management and our newest member of the nPM Family; the versatile and feature-rich nPM1300. Grab a coffee and enjoy!

Watch the webinar now

Maximum energy utilization

A chain is no stronger than its weakest link. A single-vendor system makes your product better and your life easier.

Components that are designed to work together, play better together and you don’t have to deal with several support teams from competing suppliers. Even if your product contains no other Nordic components, our Power Management ICs (PMICs) still give you the best power management possible.

person holding a battery on power management ic / intergrated circuits page

Ultra-Low Power Wireless – from Battery to Antenna

Nordic’s PMICs are built on the experience of integrating power management into our SoCs, resulting in a low power wireless solution – from battery to antenna. By offering dedicated PMICs, we put you in control of the entire energy path and enable you to build products with the longest possible battery life and the highest reliability.

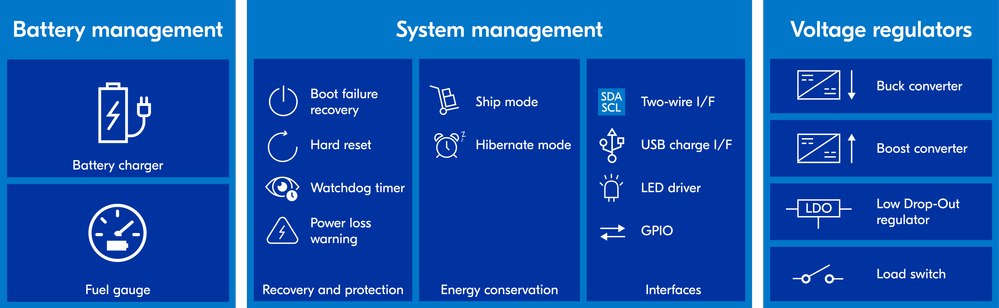

nPM1300 pmic block diagram on power management ic / intergrated circuitspage

Great things come in small packages

Customers’ demands for features are constantly growing – as is the complexity of your products. We work hard on integrating this complexity, so you don’t have to.
Nordic’s PMICs integrate essential power management features like highly efficient power regulation, battery charging and fuel gauge, load switches, GPIOs and LED drivers, with advanced system management features like hard reset, system level watchdog, power loss warning and recovery from failed boot.

a group of people in a room on power management ic / intergrated circuits page

Evaluate, implement, manufacture!

At Nordic, a great product means more than a great chip. Getting into production fast requires awesome support. The PC application nPM PowerUP brings the design team together by offering seamless integration between software and hardware development. Evaluation kits designed by hardware experts paired with the nRF Connect SDK ensure your Nordic SoC and PMIC work as a team. In the rare case our tools don’t get you all the way, our renowned technical support team has your back.
