nRF54L15 Tag Dual-antenna tag prototyping platform

nRF54L15 Tag is a compact, battery-powered tag prototyping platform with dual antennas, providing improved robustness for Bluetooth® Channel Sounding. nRF54L15 Tag is ideal for prototyping asset tags, Bluetooth trackers and products aiming to support Google Find Hub and Apple Find My networks. With its multi-sensor integration, nRF54L15 Tag also enables quick prototyping of edge AI and Matter applications.

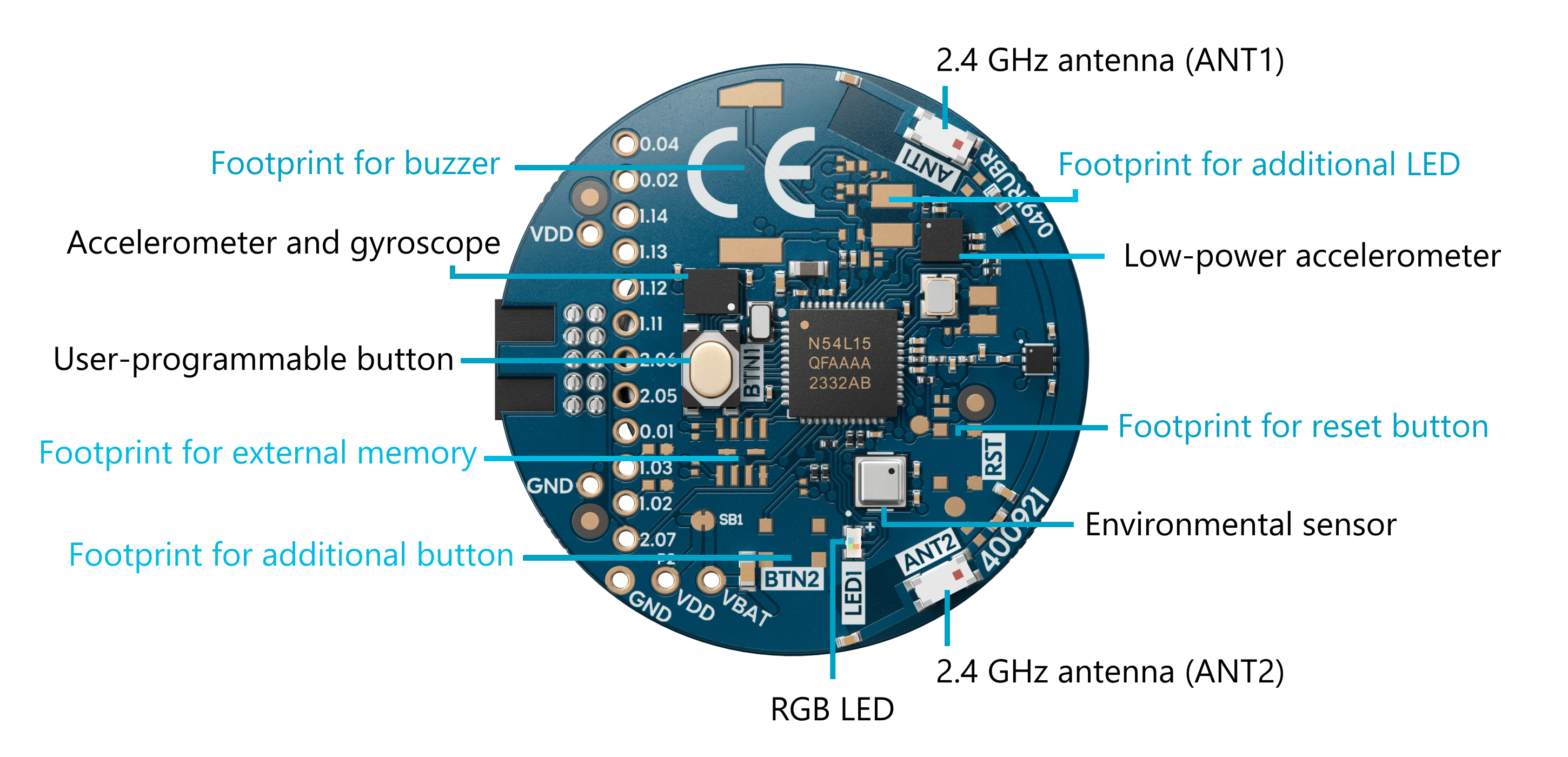

nRF54L15 Tag is built around the nRF54L15 SoC, combining an efficient 128 MHz Arm® Cortex®-M33 MCU with ultra-low-power wireless connectivity. nRF54L15 Tag integrates a low-power accelerometer for waking up the tag when it starts moving, allowing it to go to deeper sleep when stationary. This is especially important for Find Hub and Find My devices to ensure long battery life. The simplicity, long battery life and small form factor combined with the dual-antenna support for Bluetooth Channel Sounding make the nRF54L15 Tag great for prototyping tags, trackers, remote controls and smart wearables among other similar products.

nRF54L15 Tag is also fit for prototyping and collecting training data for edge AI applications, and it is supported by the nRF Edge AI Add-on. nRF54L15 Tag has a six-axis inertial measurement unit (IMU) with a high-accuracy accelerometer and gyroscope, and it supports Neuton models. Many edge AI use cases can employ the IMU for example for gesture recognition or detecting anomalies in motion or vibrations. Since the nRF54L15 Tag is battery‑powered and small enough to fit in your palm, it is an ideal choice for prototyping edge AI products.

nRF54L15 Tag can also be used for prototyping Matter enabled smart home devices. The tag has an environmental sensor which can measure air pressure, humidity, temperature and gas concentration, and it can be used for applications such as the Matter weather station.
