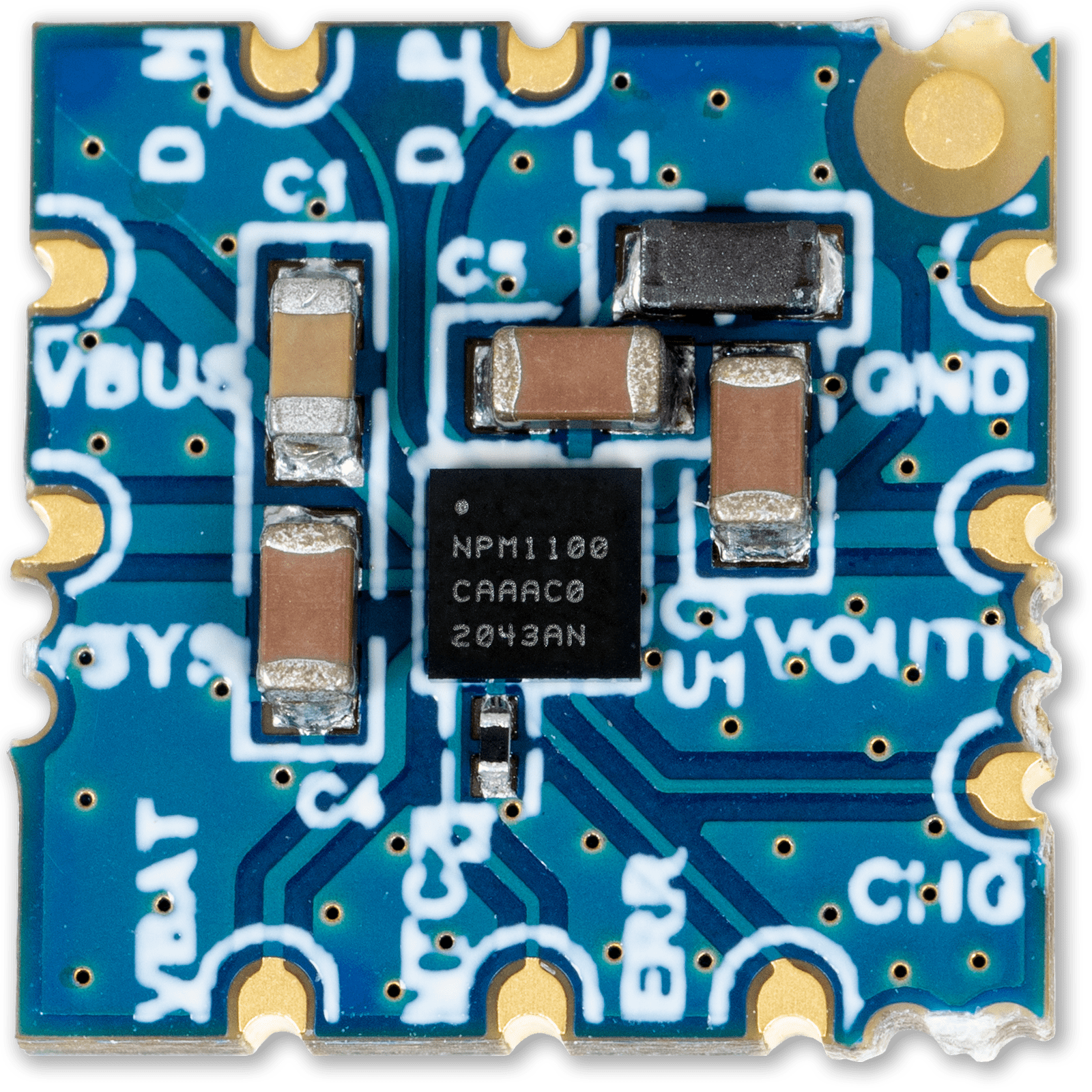

If you're reading this you are one of the few people lucky enough to receive a nPM1100 Thumnail board from one of our representatives. The nPM1100 Thumbnail is a giveaway board for showing off the nPM1100's capabilities as a small, highly efficient PMIC that requires very little board space to be fully operational. The nPM1100 Thumbnail features a fully functional nPM1100 PMIC and the passive components required to make it operate, with solder pads for select pins on the nPM1100 on a 100 mil grid. It can thus be used as a daughterboard by soldering it to a prototyping board. It can be used for powering applications with a regulated 3.0 V supply and charging lithium-ion and lithium polymer batteries via USB. For instructions see the user guide below. To read more about the nPM1100 download the product brief, or visit the nPM1100 product page.
