nPM1304 EK Evaluation Kit

Evaluation kit for the nPM1304, a highly integrated PMIC with unique system management features for small size batteries

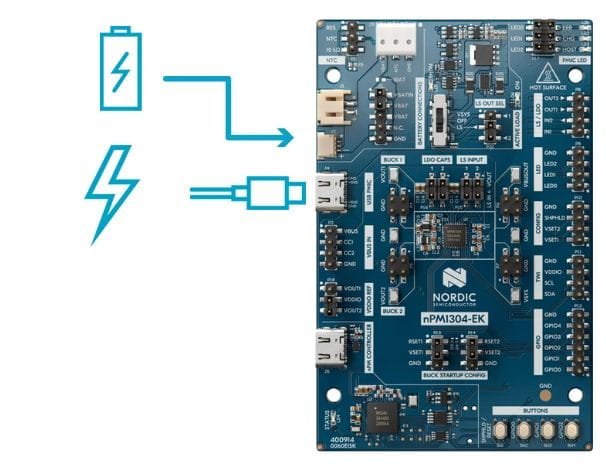

The nPM1304 Evaluation Kit (EK) enables fast evaluation and code‑free configuration of the nPM1304 PMIC using the nPM PowerUP desktop application in nRF Connect for Desktop. Through an intuitive graphical interface, all PMIC settings can be configured and exported as code for direct integration into the host MCU application.

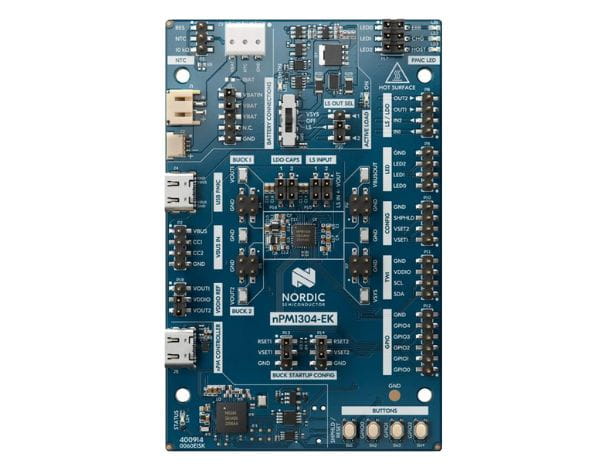

The EK provides male pin headers for access to all nPM1304 connections, allowing easy connection to Nordic Development Kits (DKs) and external test equipment. Integrated LEDs and pushbuttons enable evaluation of the PMIC’s built‑in LED drivers and GPIO functionality, while JST battery connectors support batteries with or without an internal NTC. A 20 mAh battery is included for immediate evaluation.

For fuel‑gauge evaluation, users can start with pre‑profiled battery models included in nPM PowerUP. For best state of charge and state of health accuracy, battery profiling and model generation is a one‑time process, and the nPM1304 EK includes the programmable load circuitry required to perform this profiling directly—no external fuel‑gauge board is needed.

Learn more about the nPM1304 PMIC, including fuel gauging and software & tools, on the nPM1304 product page.

Ask us about this
Key features

nPM1304 - highly efficient PMIC with advanced system management features

Includes a 20 mAh LiPo battery

Seamless configuration through nPM PowerUP desktop software

Male pin-headers for all pins on the nPM1304 PMIC, and battery connectors

USB-C for power and data communication

Supports 2 and 3 terminal batteries with JST connectors

3 LEDs and 4 pushbuttons

Controllable active load for battery profiling and load emulation
